CommCare

The Commcare modules allow you to watch the forms, and cases in your Commcare account.

Getting Started with Commcare

Prerequisites

• A Commcare account

In order to use Commcare with Boost.space Integrator, it is necessary to have a CommCare account. If you do not have one, you can create a Commcare account at dimagi.com/commcare.

Connecting Commcare to Boost.space Integrator

To connect your Commcare account to Boost.space Integrator you need to obtain the API Key from your CommCare account and insert it in the Create a connection dialog in the Boost.space Integrator module.

1. Log in to your CommCare account.

2. Click Settings (the cog-wheel) > My Account Settings > API Keys.



3. Enter a name for the API Key, select the permissions, and click Generate API Key.



4. Copy the API key to your clipboard.



5. Go to Boost.space Integrator and open the CommCare module’s Create a connection dialog.



6. In the Connection name field, enter a name for the connection.

7. In the Username field, enter your account’s username.

8. In the API Key field, enter the API details copied in step 4 and Continue.

The connection has been established.

Forms

To trigger the watch modules, see Setting Up the CommCare Webhooks.

Watch New Form Submissions

Triggers when a new form is submitted.

Webhook Name

Enter a name for the webhook.

Connection

Establish a connection to your CommCare account.

Cases

To trigger the watch modules, see Setting Up the CommCare Webhooks.

Watch New Cases

Triggers when a new case is created.

Webhook Name

Enter a name for the webhook.

Connection

Establish a connection to your CommCare account.

Watch New or Updated Case

Triggers when a new case is created or an existing case is modified.

Webhook Name

Enter a name for the webhook.

Connection

Establish a connection to your CommCare account.

Watch Updated Case

Triggers when an existing case is modified.

Webhook Name

Enter a name for the webhook.

Connection

Establish a connection to your CommCare account.

Other

Make an API Call

Performs an arbitrary authorized API call.

Connection

Establish a connection to your CommCare account.

URL

Enter a path relative to https://api.commcarehq.org/. For example: /a/project/api/v0.5/web-user

For the list of available endpoints, refer to the CommCare API Documentation.

Method

Select the HTTP method you want to use:

GET to retrieve information for an entry.

POST to create a new entry.

PUT to update/replace an existing entry.

PATCH to make a partial entry update.

DELETE to delete an entry.

Headers

Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.

Query String

Enter the request query string.

Body

Enter the body content for your API call.

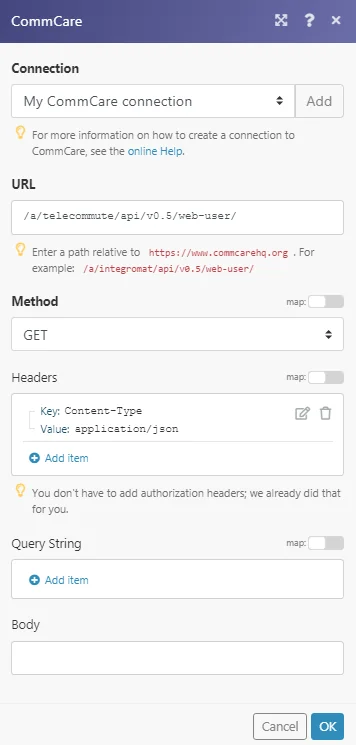

Example of Use – Get Users

The following API call returns users of the specified project from your CommCare account:

URL: /a/telecommute/api/v0.5/web-user/

Method: GET

Matches of the search can be found in the module’s Output under Bundle > Body > objects. In our example, 1 user details were returned:

Setting up the CommCare Webhooks

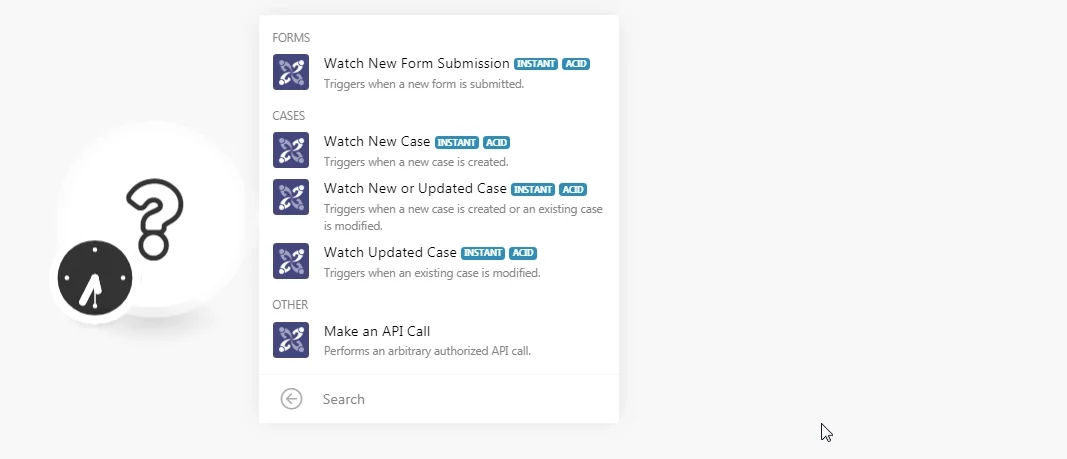

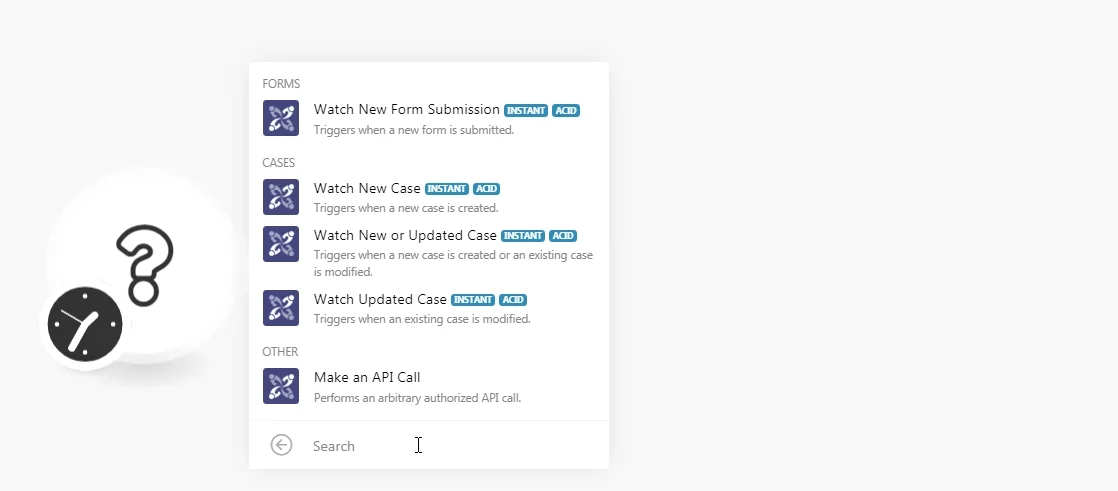

1. Open any Watch module, establish a connection, click Save, and copy the URL address to your clipboard. Click OK and save the trigger.

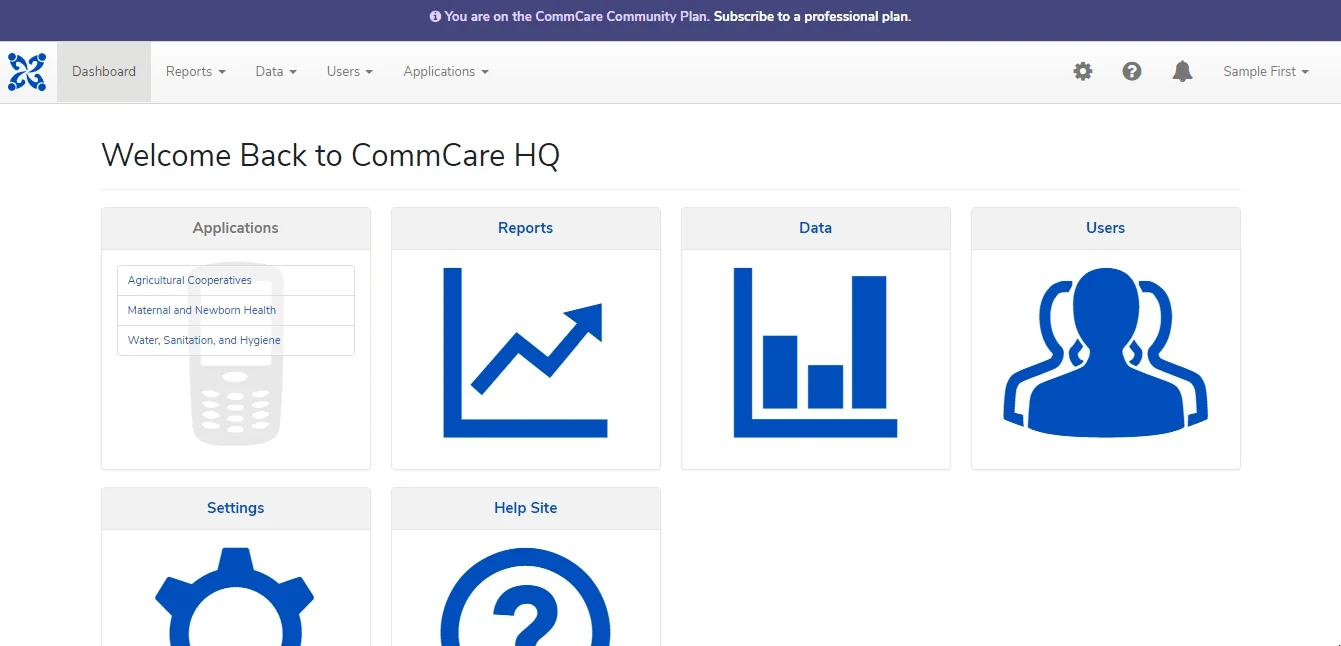

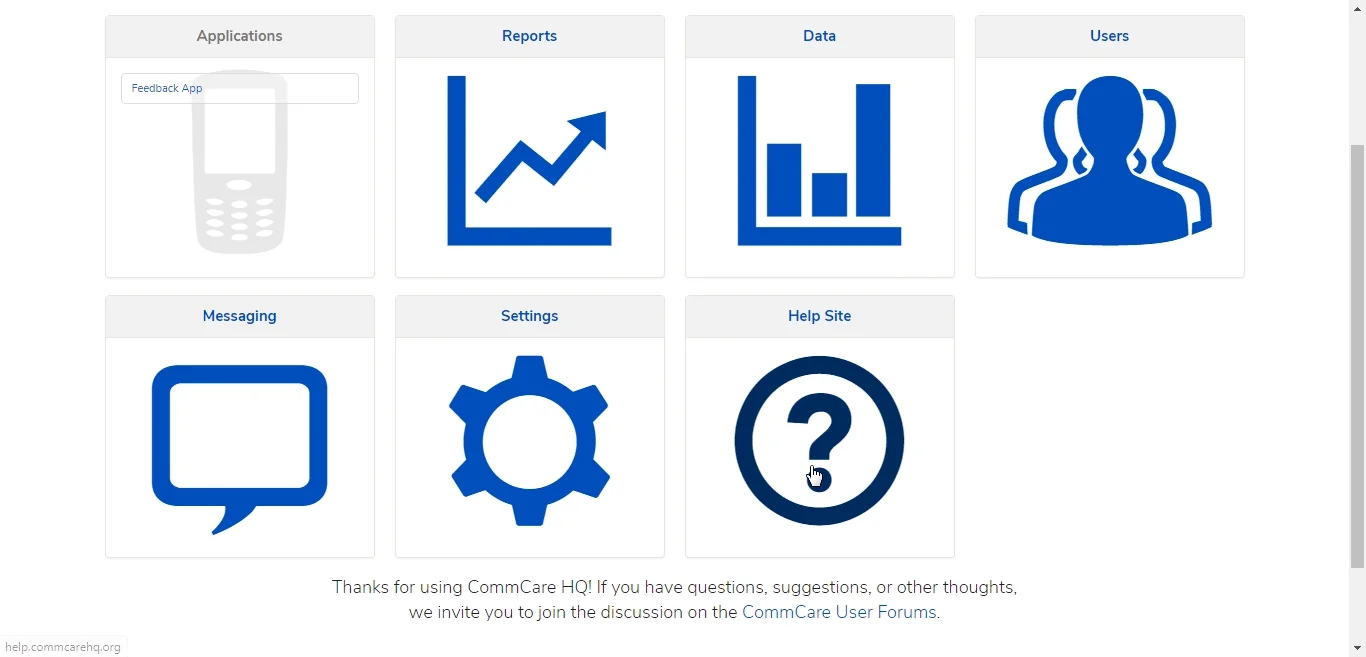

2. Log in to your CommCare account. From the Dashboard, click Settings > Connection Settings > Add Connection Settings.

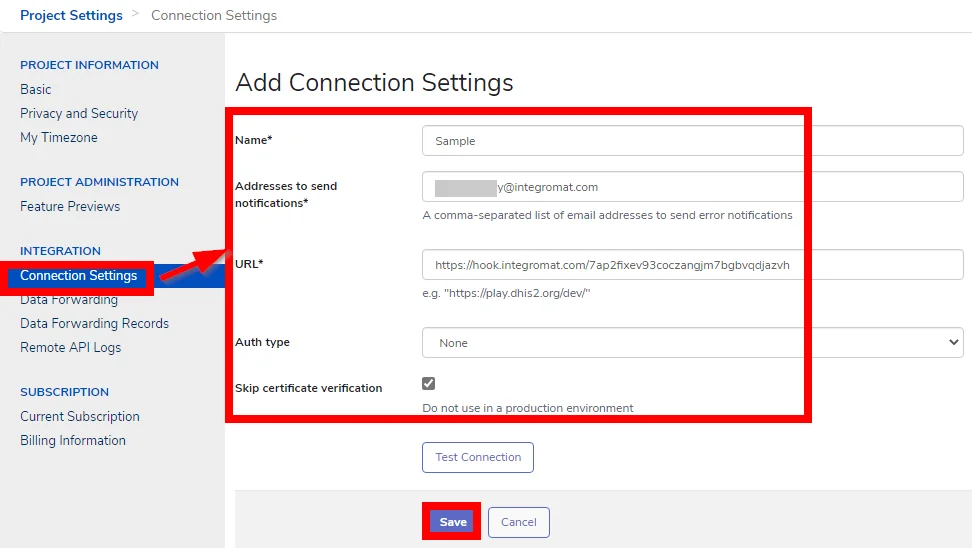

3. Enter the details for the connection and click Save.

   Name

   Enter a name for the webhook.

   Address to send notifications

   Enter the email address to which you want to send the trigger notifications.

   URL

   Enter the URL address copied in step 1.

   Auth Type

   Select the authentication type and enter the details:

   • None

   • HTTP Basic

   • HTTP Digest

   • Bearer Token

   • OAuth1

   • OAuth 2.0 Password Grant

   Skip Certificate Verification

   Select the checkbox to skip the certificate verification.



You have created the connection successfully.

Once you have created the webhook connection, setup the required data forwarding as mentioned here.

---
