Textline
The Textline modules allow you to monitor, create, update, send, retrieve, list, and delete announcements, agents, conversations, and customers in your Textline account.
Getting Started with Textline
Prerequisites
- A Textline account – you can create a Textline account at textline.com/.
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!
Connecting Textline to Boost.space Integrator
To connect your Textline account to Boost.space Integrator you need to obtain an access token from your Textline account and insert it in the Create a connection dialog in the Boost.space Integrator module.

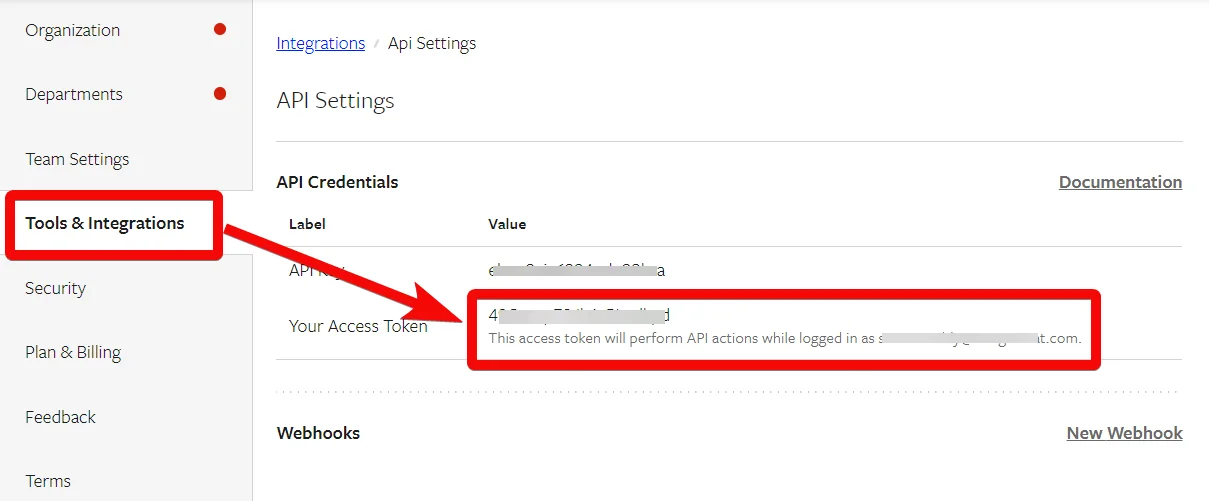

1. Log in to your Textline account.
2. Click Settings > Tools & Integrations > Developer API.
3. Copy the_Access Token_ to your clipboard.
4. Go to Boost.space Integrator and open the Textline module’s Create a connection dialog.
5. In the Connection name field, enter a name for the connection.
6. In the Access Token field, enter the token copied in step 4, and click Continue.
The connection has been established.
Customers
See Setting Up Textline Webhooks to add the webhooks in your Textline account.
Watch Customers
Triggers when a customer has been created or updated.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Search Customers
Searches for customers or lists them all.
Connection
Establish a connection to your Textline account.
Search
Enter (map) a keyword or phrase to search the customers that match the specified criteria.
Limit
Set the maximum number of customers Boost.space Integrator will return during one execution cycle.
Get a Customer
Retrieves a customer.
Connection
Establish a connection to your Textline account.
Customer UUID
Select or map the Customer UUID whose details you want to retrieve.
Create a Customer
Creates a new customer.
Connection
Establish a connection to your Textline account.
Phone Number
Select or map the phone number of the customer. For example, (222) 222-2222.
Enter (map) the email address of the customer.
Name
Enter (map) the customer name.
Notes
Enter (map) the additional information about the customer.
Tags
Add the tags for the customer.
Custom Fields
Add the custom fields and their values. For example, address.
To update the custom field for a customer, you must first get the custom field’s UUID and use that to replace field_uuid.
Update a Customer
Updates a customer.
Connection
Establish a connection to your Textline account.
Customer UUID
Select or map the Customer UUID whose details you want to update. For example, (222) 222-2222.
Enter (map) the email address of the customer.
Name
Enter (map) the customer name.
Notes
Enter (map) the additional information about the customer.
Tags
Add the tags for the customer.
Archived
Select whether the customer is archived.
Custom Fields
Add the custom fields and their values. For example, address.
To update the custom field for a customer, you must first get the custom field’s UUID and use that to replace field_uuid.
Import a Message as a Customer
Imports a post into your account as if the customer sent an SMS to your account.
Connection
Establish a connection to your Textline account.
Phone Number
Select or map the phone number of the contact whose conversation message you want to retrieve. For example, (222) 222-2222
Body
Enter (map) the message text.
Group UUID
Select or map the Group UUID to which the contact belongs.
Agents
See Setting Up Textline Webhooks to add the webhooks in your Textline account.
Watch Agent Status
Triggers when an agent’s status has been changed.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Search Agents
Searches for agents or lists them all.
Connection
Establish a connection to your Textline account.
Agent UUID
Select or map the Agent UUID whose details you want to list.
Enter (map) the email address to list the agents that match the specified email address.
Limit
Set the maximum number of agents Boost.space Integrator should return during one execution cycle.
Update Agent Status
Updates an agent’s status.
Connection
Establish a connection to your Textline account.
Agent UUID
Select or map the Agent UUID whose status you want to update.
Available
Select the checkbox to make the agent status to available.
Conversations
See Setting Up Textline Webhooks to add the webhooks in your Textline account.
Watch Customer Posts
Triggers when a message from a customer has been received.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Watch Outbound Messages
Triggers when an outbound message has been sent.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Watch Conversation Status
Triggers when a conversation status has been changed.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Watch Whisper
Triggers when a whisper from an agent has been received.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your Textline account.
Message a Phone Number
Sends an outbound message to a phone number.
Connection
Establish a connection to your Textline account.
Phone Number
Enter (map) the phone number to which you want to send the message.
Body
Enter (map) the message text you want to send.
Resolve
Select the checkbox to resolve the message text after sending the message.
Group UUID
Select or map the Group UUID of the department from which you want to retrieve conversations. If you are not using a department UUID then the message will go out on your first department.
Attachments
Add the URL addresses of the attachments which you want to attach to the message.
Message a Conversation
Sends an outbound message to a conversation.
Connection
Establish a connection to your Textline account.
Conversation UUID
Select or map the Conversation UUID you want to message.
Body
Enter (map) the message text you want to send.
Resolve
Select the checkbox to resolve the message text after sending the message.
Attachments
Add the URL addresses of the attachments which you want to attach to the message.
Surveys
Send a Survey
Sends a new survey.
Connection
Establish a connection to your Textline account.
Survey UUID
Select or map the Survey UUID you want to send.
Selection Type
Select or map the option to send the survey:
-
Phone Numbers
-
Saved Searches
-
Tags
Tags
Add the survey tags separated by a comma.
Phone Numbers
Add the phone number of the contacts to whom you want to send the survey.
Saved Search UUID
Enter (map) the saved Search UUID to whom you want to send the survey.
Announcements
Send an Announcement
Sends an announcement to a group of contacts.
Connection
Establish a connection to your Textline account.
Selection Type
Select or map the option to send the announcement:
-
Phone Numbers
-
Saved Searches
-
Tags
Tags
Add the tags of the contact separated by a comma to send the announcement that matches the specified tag.
Phone Numbers
Add the phone number of the contacts to whom you want to send the announcement.
Group UUID
Select or map the Group UUID to whose contact you want to send the announcement.
Comment Body
Enter (map) the announcement text.
Title
Enter (map) a title for the announcement.
Resolve on Send
A true/false value to set whether the conversation opened after an announcement is sent should be resolved. This does not affect conversations open before the announcement is sent.
Assignment Target UUID
Enter (map) the UUID of the agent that should be assigned any conversations created (and opened) as a result of the announcement.
Reply Window Value
Enter (map) time in seconds after which any message sent in by the contact should be considered a reply to the announcement.
Reply Assignment Target UUID
Select or map the UUID of the agent that should be assigned any conversations opened as a result of a contact replying to the announcement.
Other
Make an API Call
Performs an arbitrary authorized API call.
Connection
Establish a connection to your Textline account.
URL
Enter a path relative to https://application.textline.com/api For example: /organizations.json
For the list of available endpoints, refer to the Textline API Documentation.
Method
Select the HTTP method you want to use:
GET to retrieve information for an entry**.**
POST to create a new entry.
PUT to update/replace an existing entry.
PATCH to make a partial entry update.
DELETE to delete an entry.
Headers
Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call.

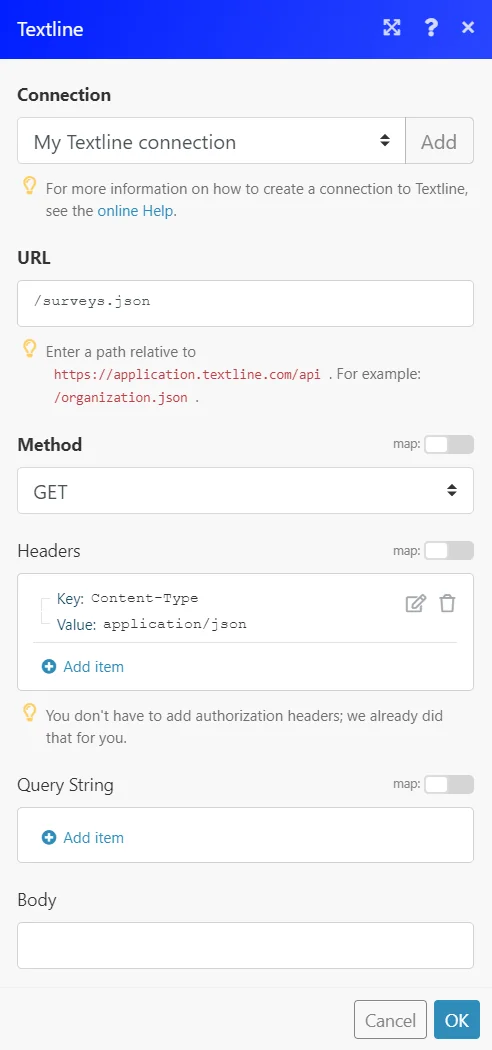

Example of Use – List Surveys
The following API call returns all the surveys from your Textline account:
URL: /surveys.json
Method: GET

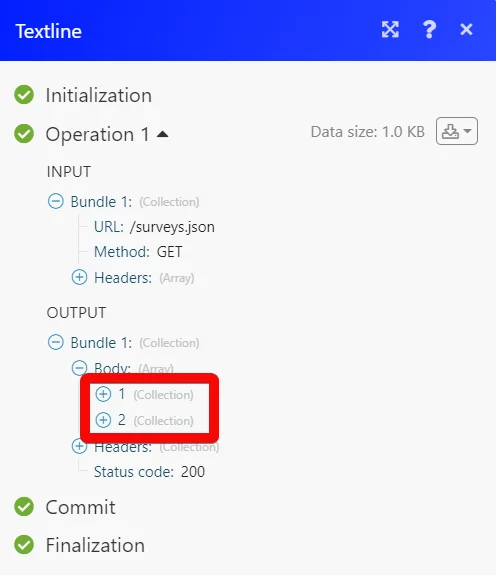

Matches of the search can be found in the module’s Output under Bundle > Body > data. In our example, 2 surveys were returned:
Setting Up Textline Webhooks

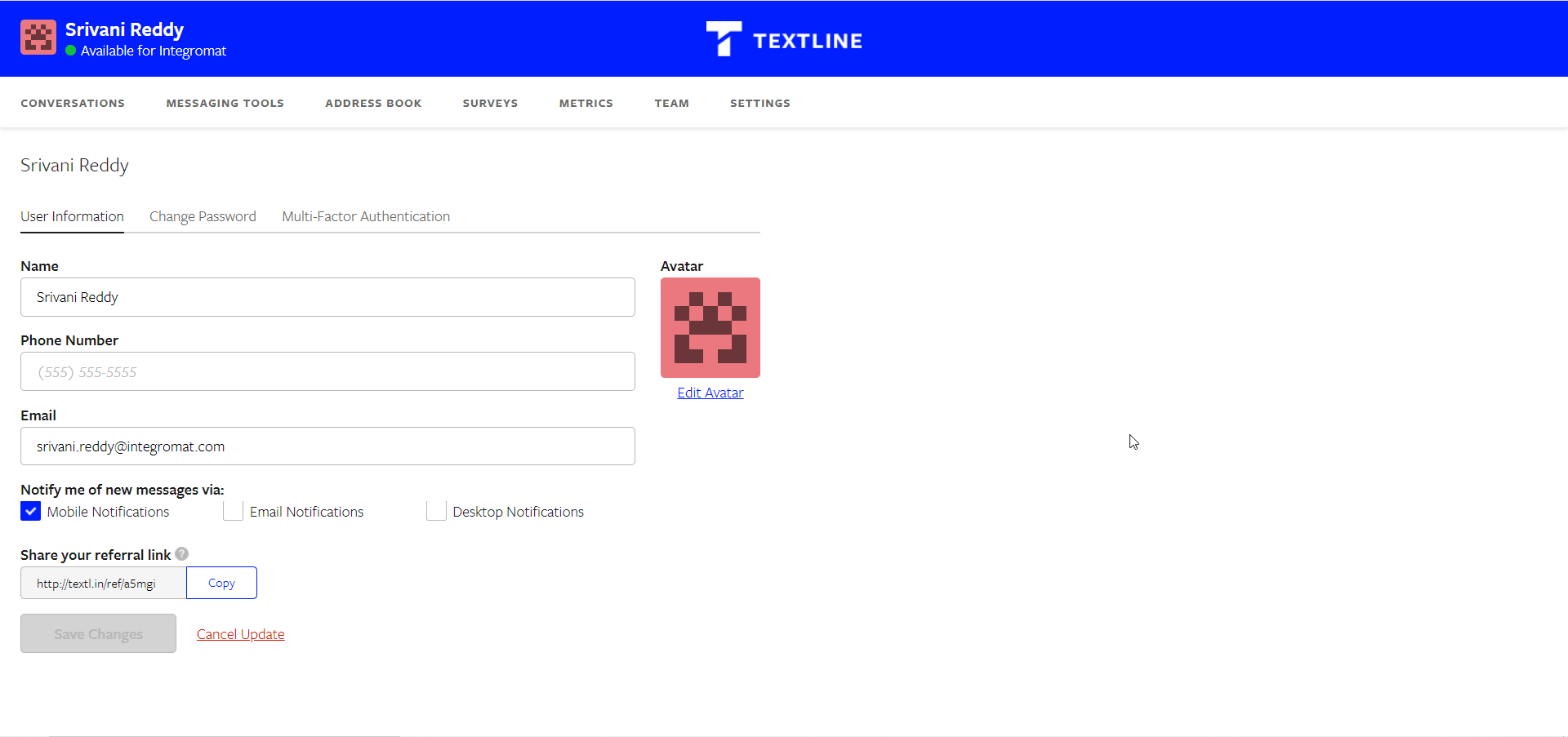

1. Open any Watch module, establish a connection and copy the URL address to your clipboard. Click _OK_and save the trigger.
2. Log in to your Textline account.
3. Click Settings > Tools & Integrations > Developer API > New Webhook.
4. Enter the following details:
-
Type: Select the type of event you want to watch
-
URL: Enter (map) the URL address copied in step 1
-
Method: Select the HTTPS request method.
5. Click Save.
The webhook is successfully set up. Go back to Boost.space Integrator and run the scenario module to receive triggers when the specified event occurs.
