Refiner
The Refiner modules allow you to monitor the completed surveys, segments, identify users, list contacts, create, update, send, retrieve, and list the conversations, people, visitors, and websites in your Refiner account.
Getting Started with Refiner
Prerequisites
- A Refiner account – create an account at app.refiner.io/auth/register.
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!
Connecting Refiner to Boost.space Integrator
To connect your Refiner account to Boost.space Integrator you need to obtain the API Key from your Refiner account and insert it in the Create a connection dialog in the Boost.space Integrator module.
1. Log in to your Refiner account.
2. Click Integrations (
3. Go to Boost.space Integrator and open the Refiner module’s Create a connection dialog.
4. In the Connection name field, enter a name for the connection.
5. In the API Key field, enter the API key copied in step 2, and click Continue.
The connection has been established.

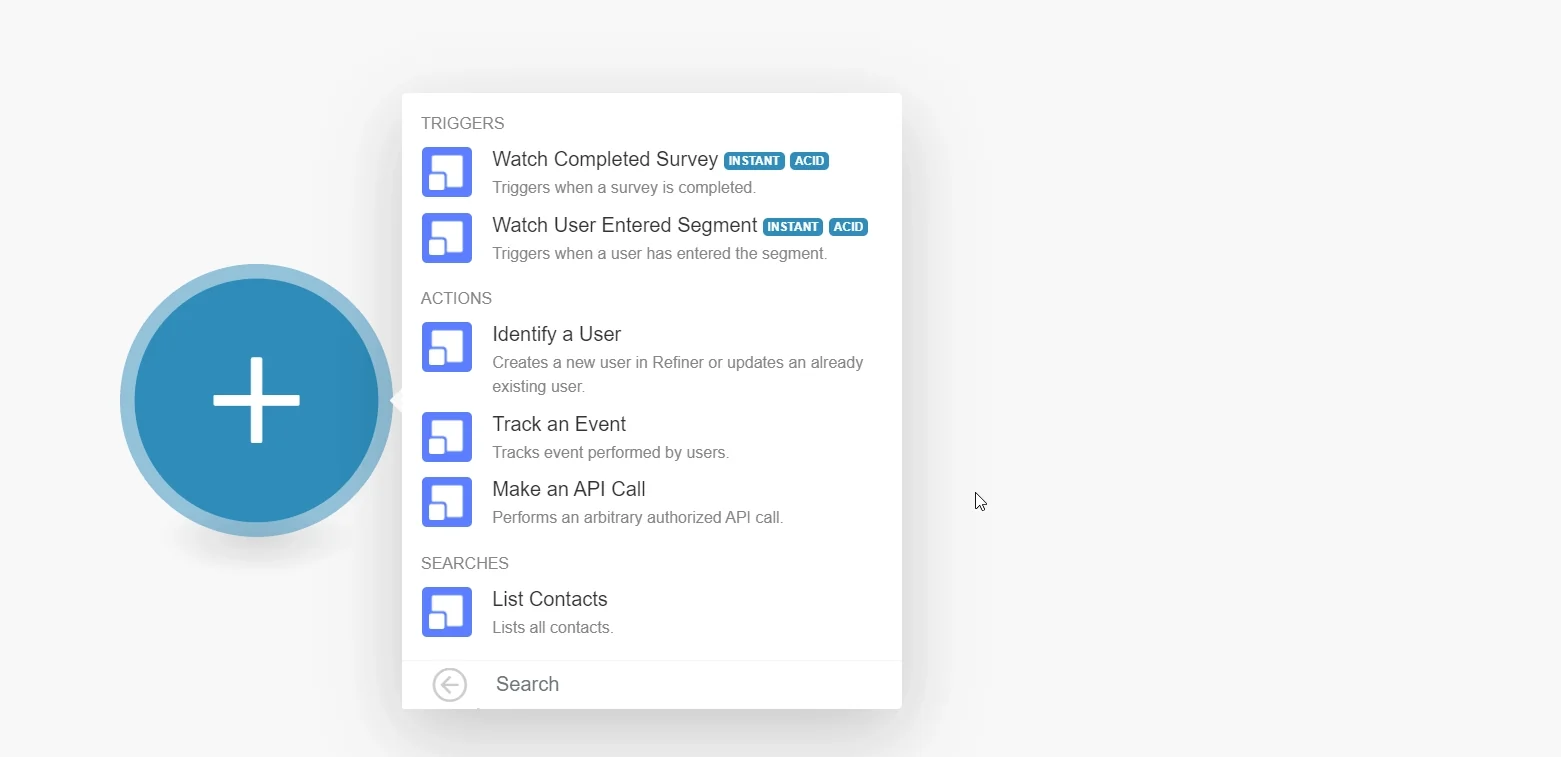

Triggers
See setting up Refiner webhooks to add webhooks to your Refiner account.
Watch Completed Survey
Triggers when a survey is completed.
Webhook Name
Enter a name for the webhook.
Watch User Entered Segment
Triggers when a user has entered the segment.
Webhook Name
Enter a name for the webhook.
Actions
Identify a User
Creates a new user in Refiner or updates an already existing user.
Connection
Establish a connection to your Refiner account.
User ID
Select or map the User ID you want to identify.When you identify a user for the first time, a newcontact will be created in Refiner. All subsequent calls with the same user ID will update their attributes.
Additional Data
Enter (map) the additional fields and the values of the user you want to identify. For example, the user’s first name.
Track an Event
Tracks events performed by users.
Connection
Establish a connection to your Refiner account.
User ID
Select or map the User ID whose event you want to track.
Event Name
Enter (map) the event name you want to track.
Make an API Call
Performs an arbitrary authorized API call.
Connection
Establish a connection to your Refiner account.
URL
Enter a path relative to https://api.refiner.io For example: /v1/contacts
For the list of available endpoints, refer to the Refiner API Documentation.
Method
Select the HTTP method you want to use:
GET to retrieve information for an entry.
POST to create a new entry.
PUT to update/replace an existing entry.
PATCH to make a partial entry update.
DELETE to delete an entry.
Headers
Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call.

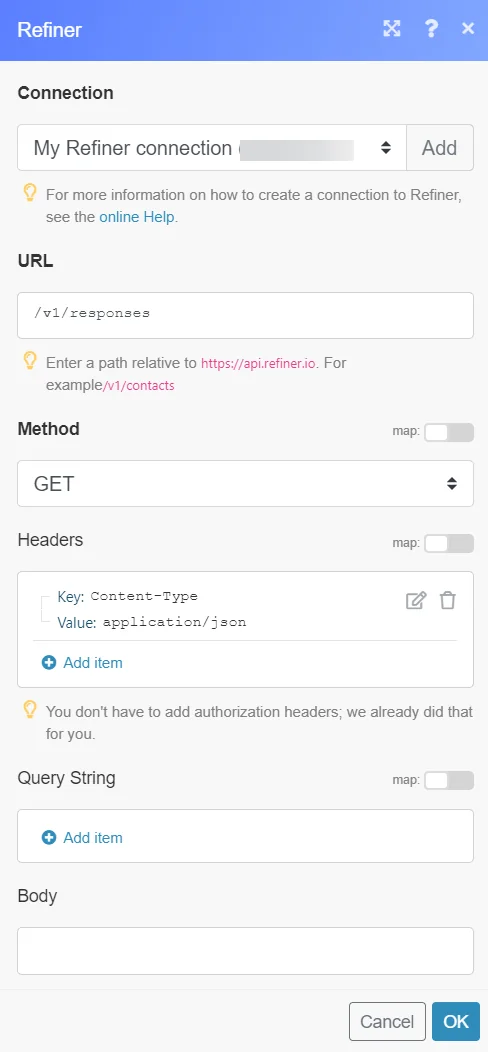

Example of Use – List Responses
The following API call returns all the responses from your Refiner account:
URL: /v1/contacts
Method: GET

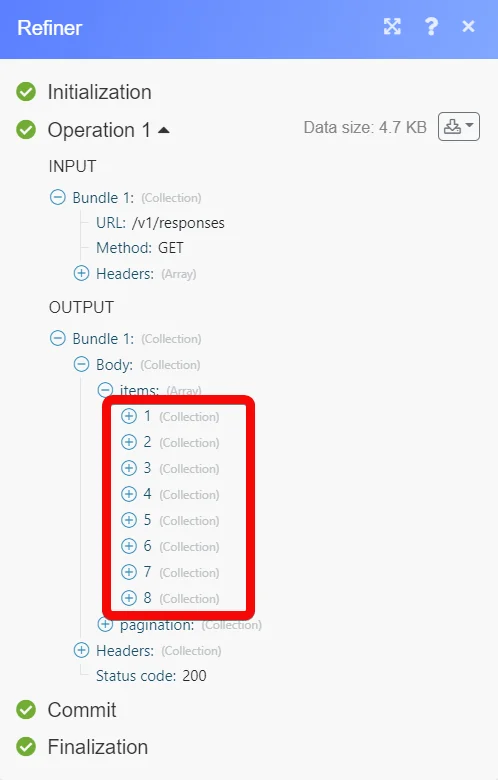

Matches of the search can be found in the module’s Output under Bundle > Body > items. In our example, 8 responses were returned:
Searches
List Contacts
Lists all contacts.
Connection
Establish a connection to your Refiner account.
Order by
Select or map the order in which you want to list the contacts. For example, Display Name.
From UUID
Select or map the UUI ID to list the contacts associated with a specified survey.
Segment UUID
Select or map the Segment ID to list the responses of the contacts that match the specified segment.
Limit
Set the maximum number of users Boost.space Integrator should return during one execution cycle.
Setting Up Refiner Webhooks

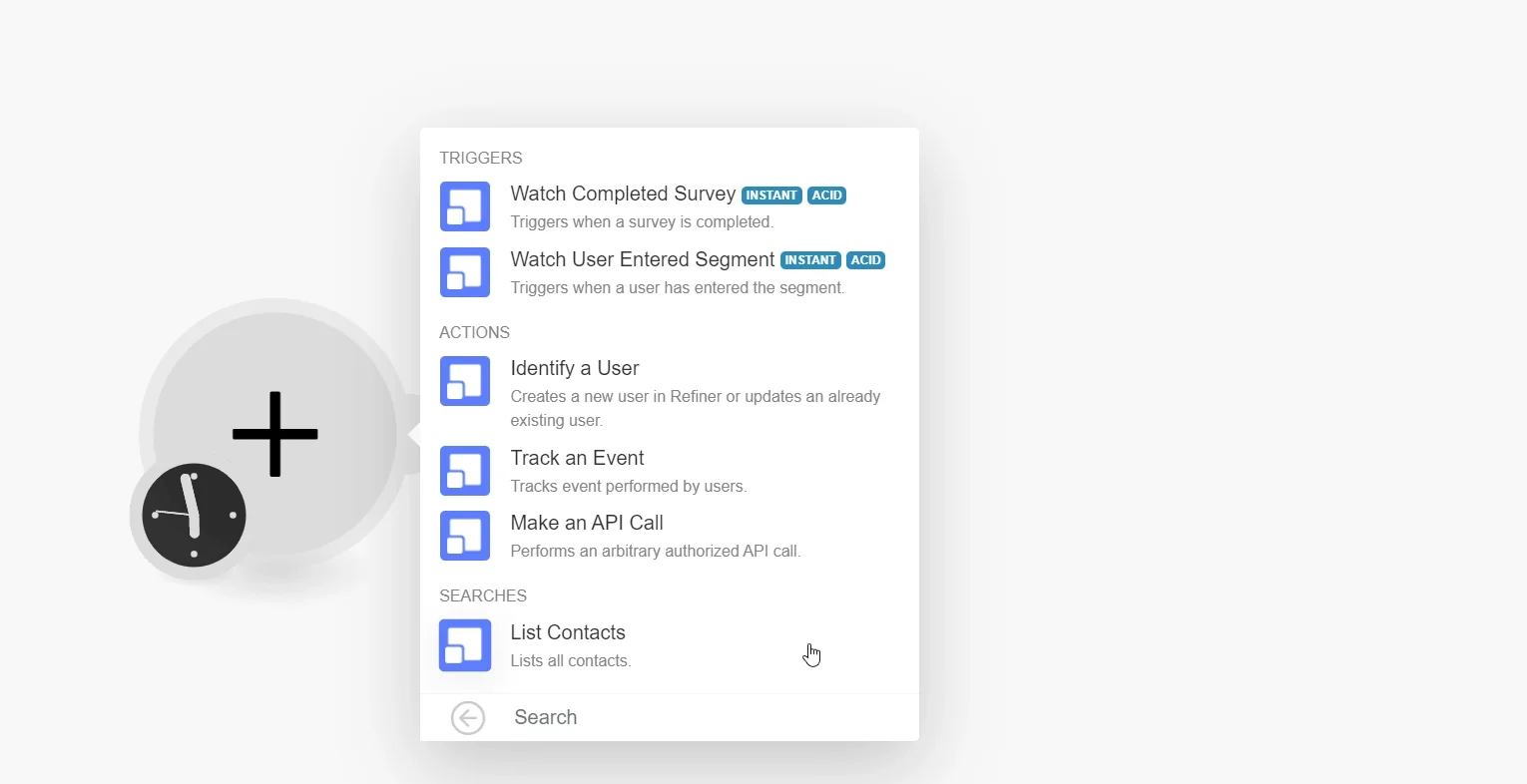

1. In the Boost.space Integrator account, open any Watch module, enter a name for the webhook, click Save, and copy the URL address to your clipboard.
2. Click OK and save the trigger.

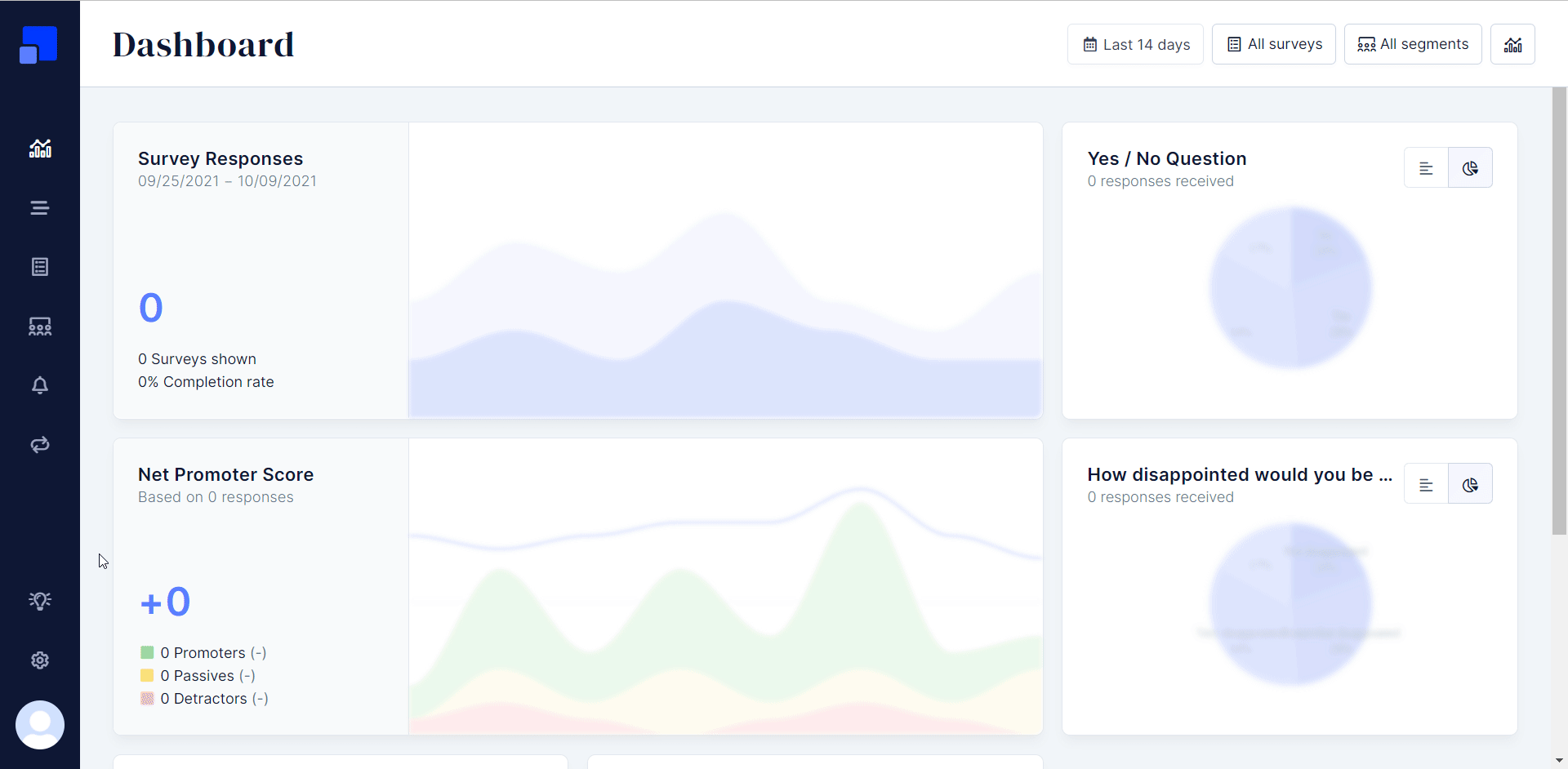

3. Log in to your Refiner account. Click Integrations (

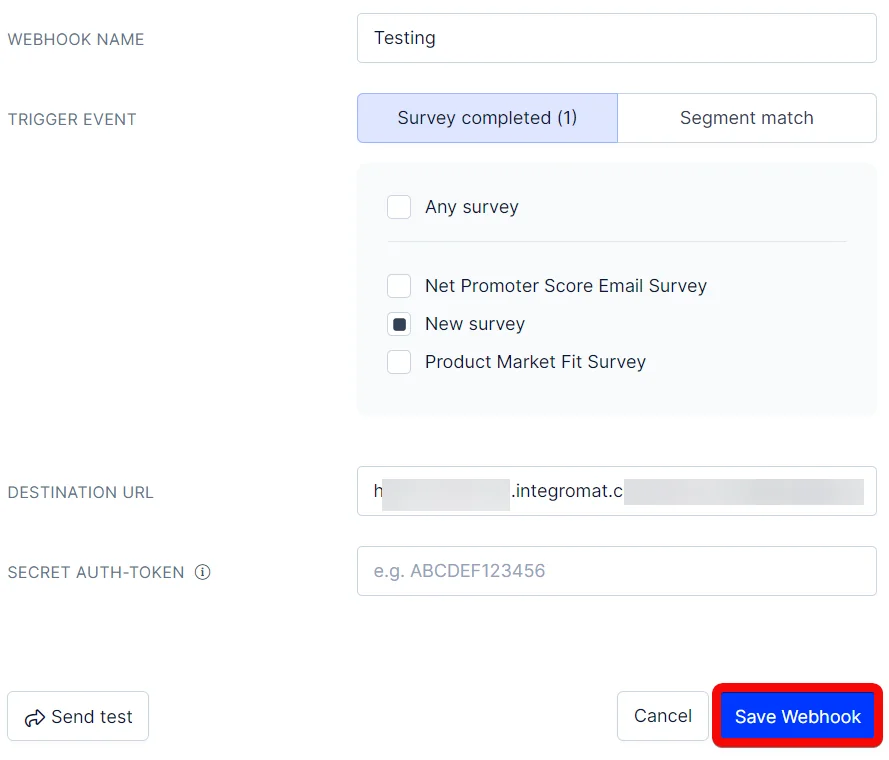

4. Enter the details as follows and click Save Webhook:
Webhook Name
Enter (map) a name for the webhook.
Trigger Event
Select the events for which you want to receive the triggers.
Destination URL
Enter (map) the URL address copied in step 1.
Secret Auth-Token
The Refiner can add a secret Auth-Token to secure your webhooks if you like. Your token will be added as a Bearer Token in the HTTP Auth Header.

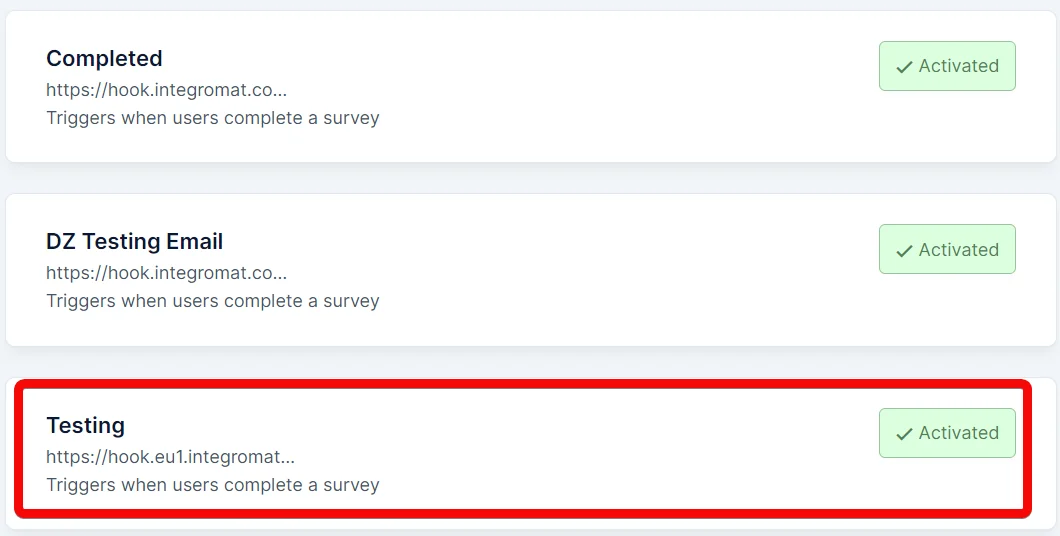

You have successfully added the webhook.
