CallRail
The CallRail modules allow you to watch the pre-calls, modified calls, SMS, users, trackers, companies, and calls in your CallRail account.
Getting Started with CallRail
Prerequisites
- A CallRail account
In order to use CallRail with Boost.space Integrator, it is necessary to have a CallRail account. If you do not have one, you can create a CallRail account at callrail.com.
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!
Connecting CallRail to Boost.space Integrator
To connect your CallRail account to Boost.space Integrator you need to obtain the API Key from your CallRail account and insert it in the Create a connection dialog in the Boost.space Integrator module.
-

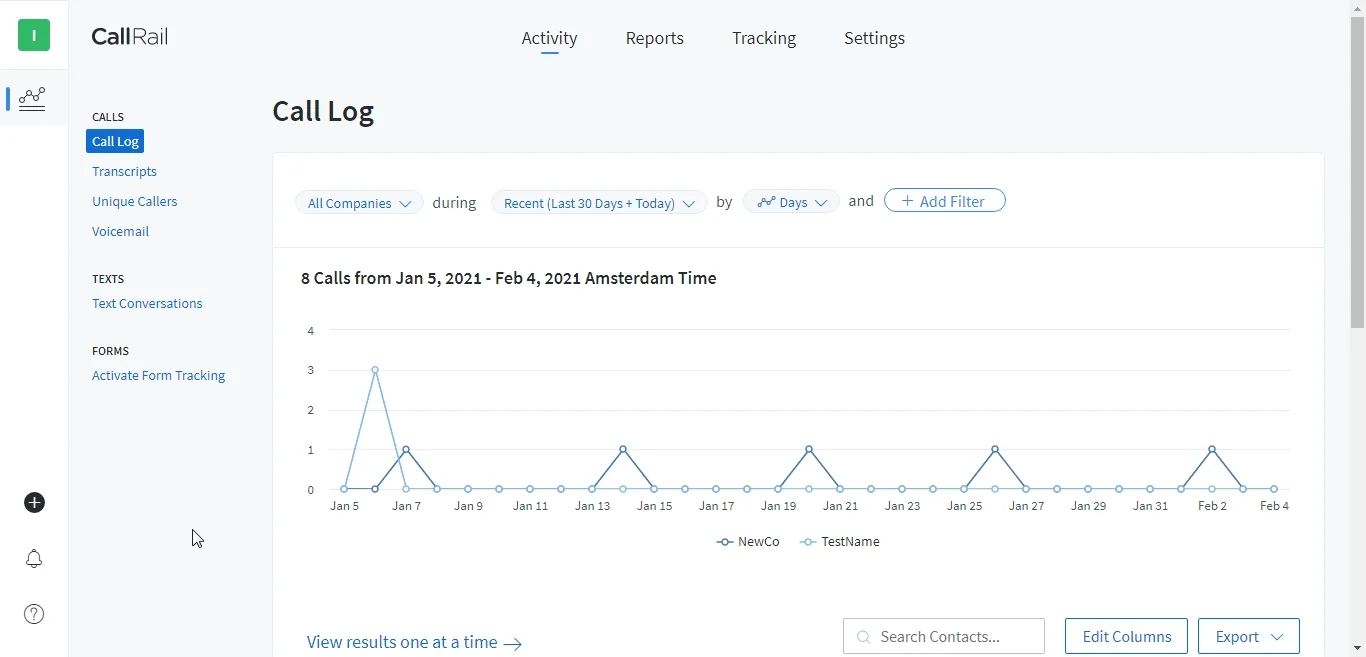

Log in to your CallRail account.
-

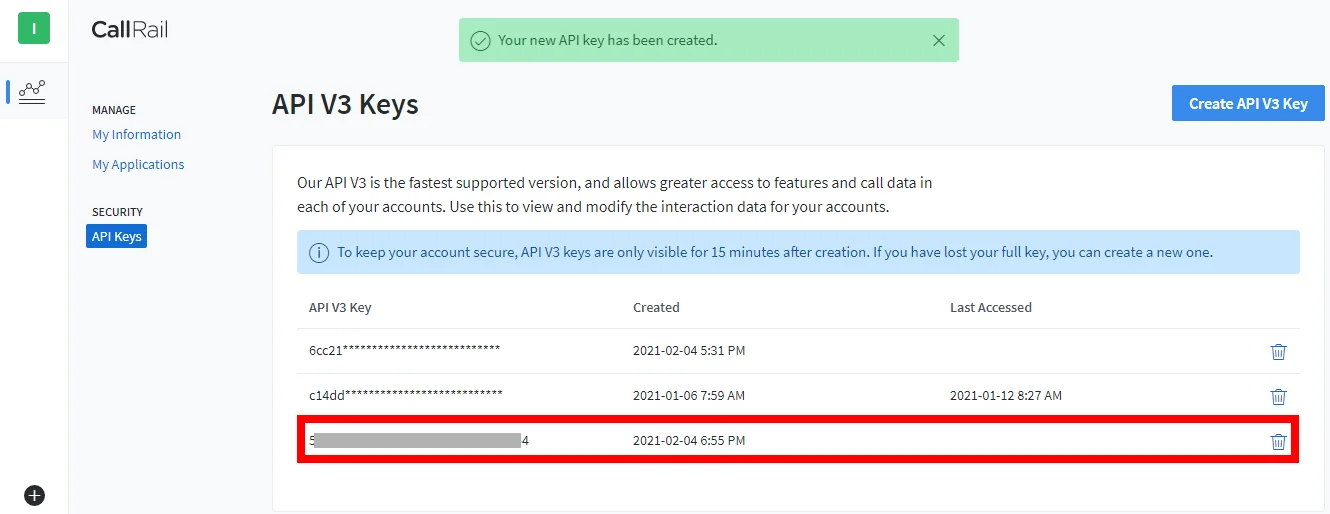

Click Your Account Name > My Profile > API Keys > Create API V3 Key.
-
Copy the API Key to your clipboard.
-
Go to Boost.space Integrator and open the CallRail module’s Create a connection dialog.
-
In the Connection name field, enter a name for the connection.
-
In the API Key field, enter the API Key copied in step 3.
-

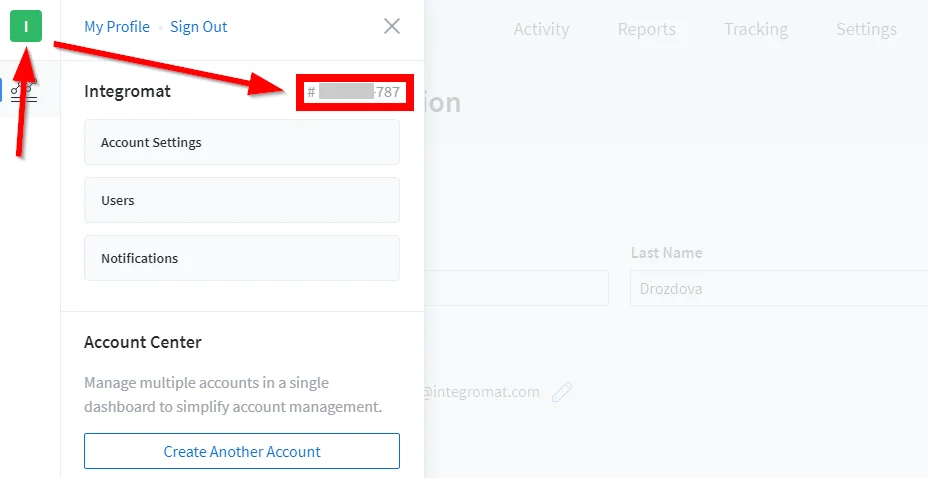

In the Account ID field, enter your 9-digit account ID without any special characters. You can find the Account ID when you click Your Account Name. For example,
713863719.
-
Click Continue.
The connection has been established.

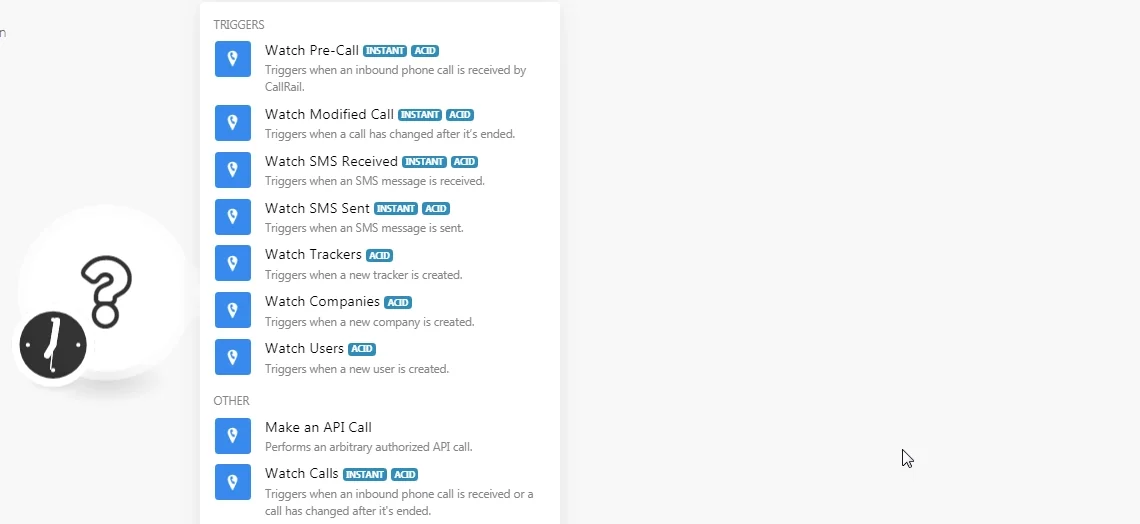

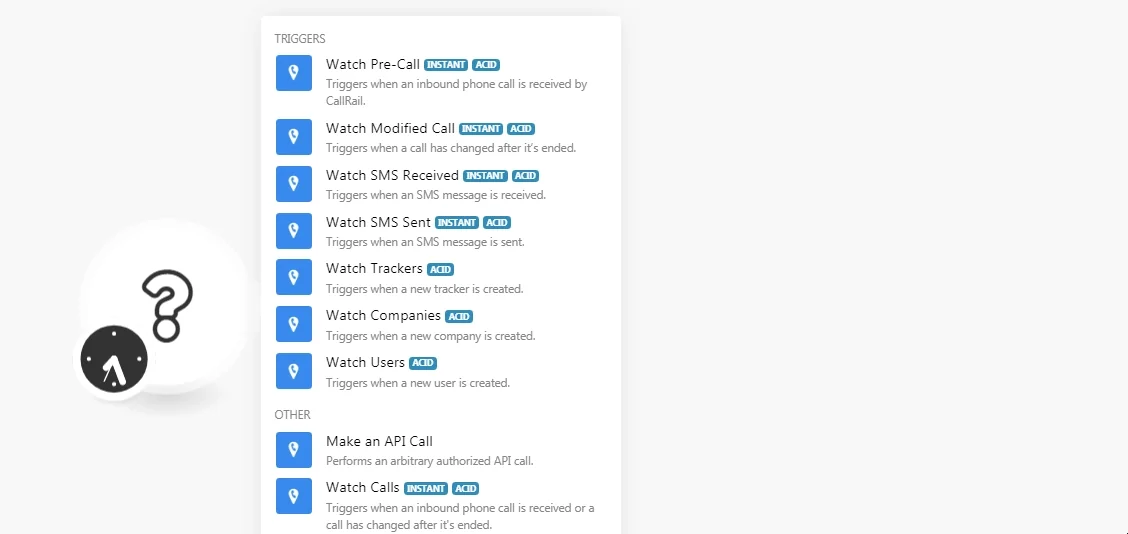

Triggers
See the Setting Up the CallRail Webhooks to add the webhook in your CallRail account.
Watch Pre-Call
Triggers when an inbound phone call is received by CallRail.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your CallRail account.
Watch Modified Call
Triggers when a call has changed after it’s ended.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your CallRail account.
Watch SMS Received
Triggers when an SMS message is received.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your CallRail account.
Watch SMS Sent
Triggers when an SMS message is sent.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your CallRail account.
Watch Trackers
Triggers when a new tracker is created.
Connection
Establish a connection to your CallRail account.
Limit
Set the maximum number of trackers Boost.space Integrator should return during one scenario execution cycle.
Watch Companies
Triggers when a new company is created.
Connection
Establish a connection to your CallRail account.
Limit
Set the maximum number of companies Boost.space Integrator should return during one scenario execution cycle.
Watch Users
Triggers when a new user is created.
Connection
Establish a connection to your CallRail account.
Limit
Set the maximum number of users Boost.space Integrator should return during one scenario execution cycle.
Other
Make an API Call
Performs an arbitrary authorized API call.
Connection
Establish a connection to your CallRail account.
URL
Enter a path relative to https://api.callrail.com/. For example: /v3/a/<Account_ID>/companies.json
For the list of available endpoints, refer to the CallRail API Documentation.
Method
Select the HTTP method you want to use:
GET
to retrieve information for an entry.
POST
to create a new entry.
PUT
to update/replace an existing entry.
PATCH
to make a partial entry update.
DELETE
to delete an entry.
Headers
Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call.

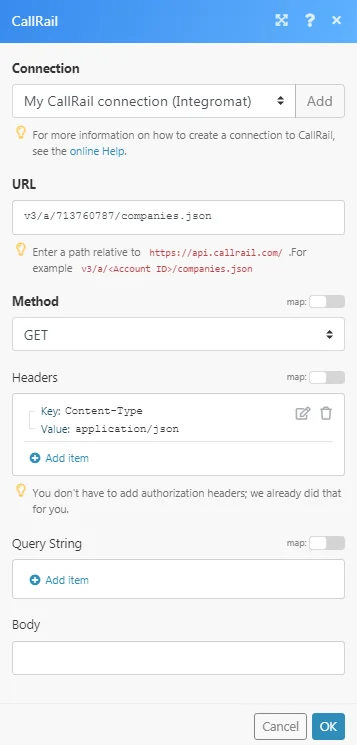

Example of Use – List Companies
The following API call returns all the companies from your CallRail account:
URL
/v3/a/Account_ID/companies.json
Method
GET

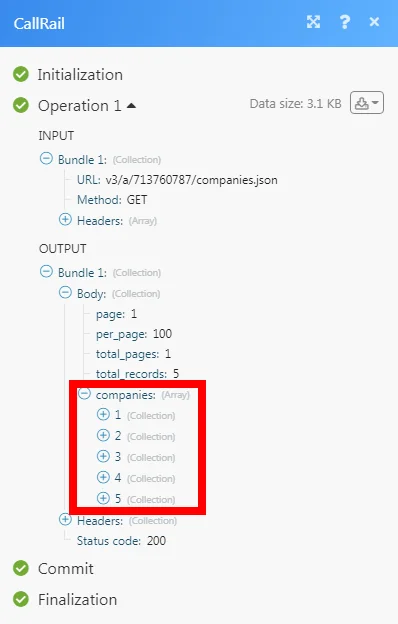

Matches of the search can be found in the module’s Output under Bundle > Body > companies.
In our example, 5 companies were returned:
Watch Calls
Triggers when an inbound phone call is received or a call has changed after it’s ended.
Webhook Name
Enter a name for the webhook.
Connection
Establish a connection to your CallRail account.
Company ID
Select the Company ID whose call you want to watch.
Setting Up the CallRail Webhooks
-
Open any_Watch_module, enter the details as provided in the respective module, click Save and copy the URL address to your clipboard.
-

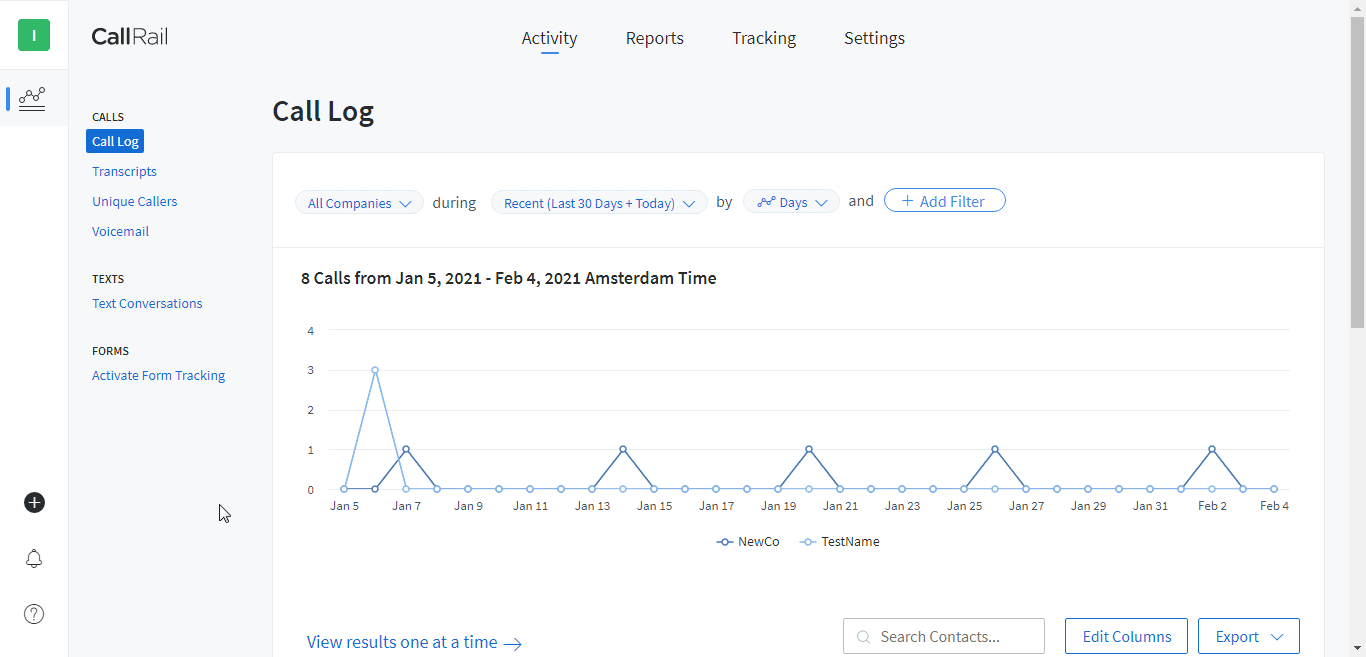

Log in to your CallRail account. Click Settings > Manage >Add Integration > Webhooks.
-

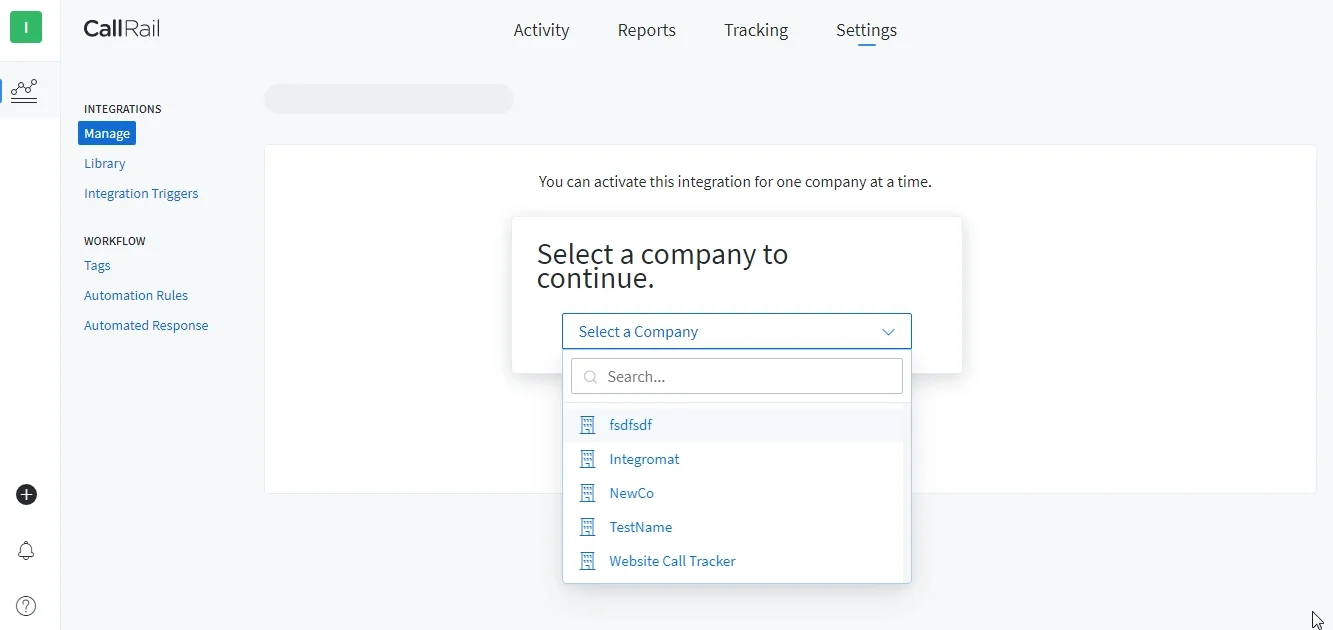

Select the company for which you add the trigger.
-
In the required event field, add the URL address copied in step 1, and click Update.

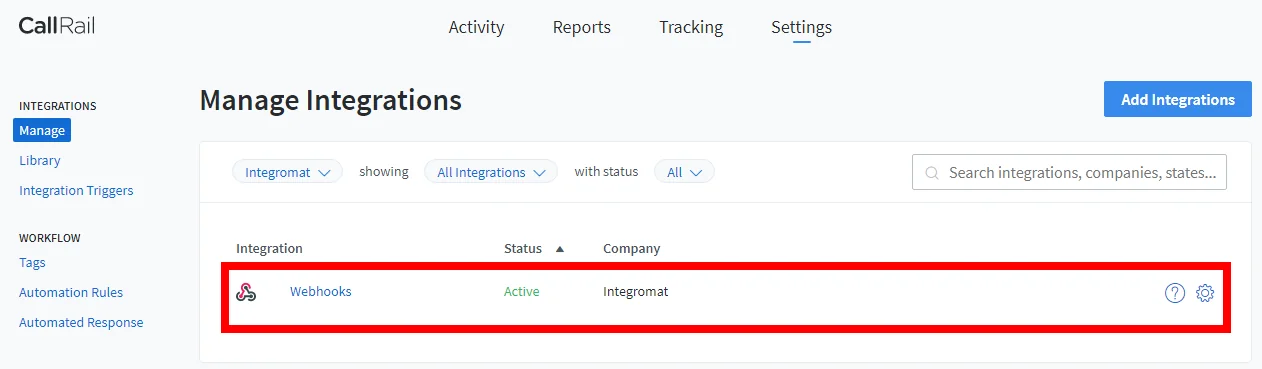

You have successfully added the webhook.
