ConvertAPI
The ConvertAPI modules allow you to upload and convert the files in your ConvertAPI account.
Getting Started With ConvertAPI
Prerequisites
- A ConvertAPI account – create an account at convertapi.com
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!
Connecting ConvertAPI to Boost.space Integrator
To connect your ConvertAPI account to Boost.space Integrator, you’ll need to obtain the secret value from your ConvertAPI account, and insert it into the Create a connection dialog in the Boost.space Integrator module.
-

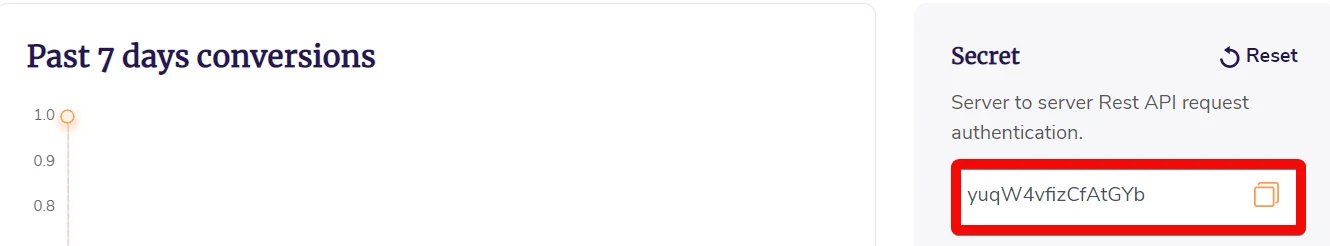

Log in to your ConvertAPI account, and copy the secret value to your clipboard.
-
Go to Boost.space Integrator, and open the ConvertAPI module’s Create a connection dialog.
-
In the Connection name field, enter a name for the connection.
-
In the Secret field, enter the secret valued copied in step 1, and click Continue.
The connection has been established.

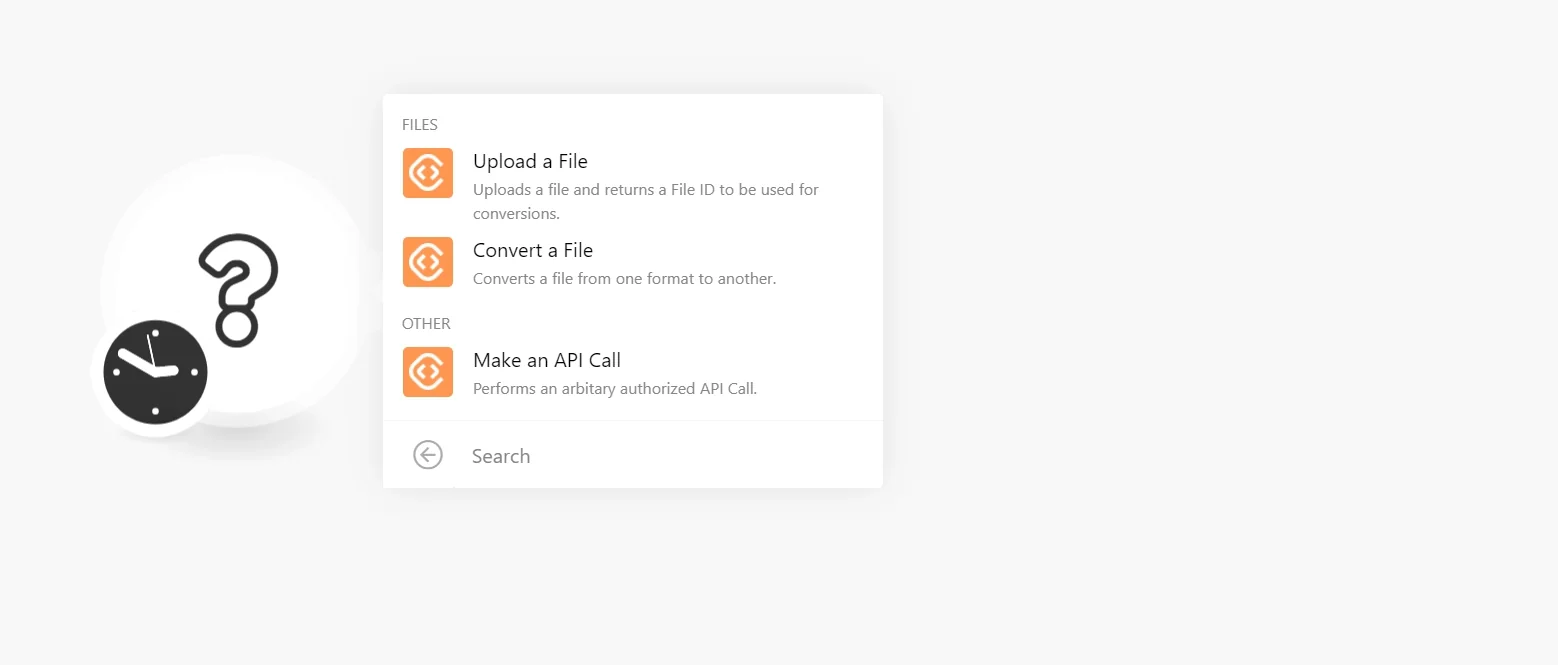

Files
Upload a File
Uploads a file and returns a File ID to be used for conversions.
File Adding Method
Select the option to upload the file:
-
Upload as a file
-
Upload from Remote Server
File
Enter (map) the file data.
File Name
Enter (map) the file name with extension. For example, image.jpg.
File URL
Enter (map) the URL address of the file.
Convert a File
Converts a file from one format to another.
Connection
Establish a connection to your ConvertAPI account.
Fill in Parameters
Select the option to fill in the details of the file you want to convert.
From Format
Select or map the format of the file you want to convert.
To Format
Select or map the format to which you want to convert the file. Based on the format selected, fill in the dynamic fields that auto-populate.
File Adding Method
Select the option to upload the file:
-
Upload as a file
-
Upload from Remote Server
File ID
Enter (map) the File ID you want to convert.
File
Enter (map) the file data.
File Name
Enter (map) the file name with extension. For example, image.jpg.
File URL
Enter (map) the URL address of the file.
Document Password
Enter (map) the password for the document.
Store File
Select whether you want to store the file.
Timeout
Enter (map) the seconds used when storing the files on the ConvertAPI server. Enter a value between 10 and 1200.
Other
Make an API Call
Performs an arbitrary authorized API call.
Connection
Establish a connection to your ConvertAPI account.
URL
Enter a path relative to https://v2.convertapi.com For example: /upload
For the list of available endpoints, please refer to the ConvertAPI API Documentation.
Method
Select the HTTP method you want to use:
GET
to retrieve information for an entry.
POST
to create a new entry.
PUT
to update/replace an existing entry.
PATCH
to make a partial entry update.
DELETE
to delete an entry.
Headers
Enter the desired request headers. You don’t have to add authorization headers; we’ve already done that for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call.

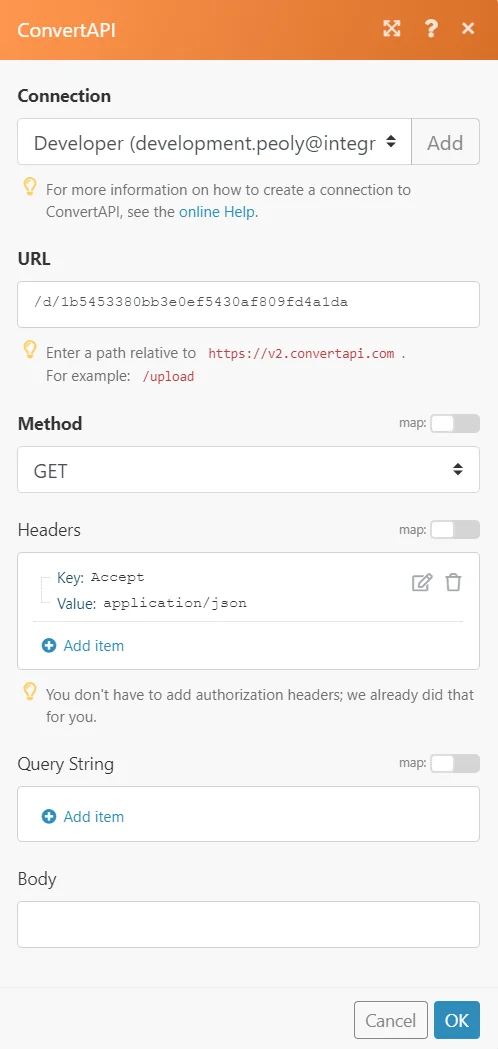

Example of Use – Download a File
The following API call returns all the specified file details from your ConvertAPI account:
URL:
/d/1b5453380bb3e0ef5430af809fd4a1da
Method:
GET
Matches of the search can be found in the module’s Output under Bundle >Body.

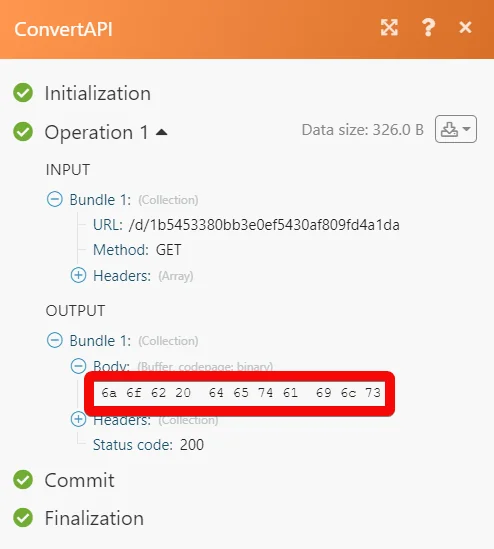

In our example, the specified file details were returned:
