Frame.io
The Frame.io modules enable you to monitor, create, update, retrieve, or delete assets and comments in your Frame.io account.
Getting Started with Frame.io
Prerequisites
- A Frame.io account
In order to use Frame.io with Boost.space Integrator, it is necessary to have a Frame.io account. If you do not have one, you can create a Frame.io account at accounts.frame.io/welcome.
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!
Connect Frame.io to Boost.space Integrator
To connect your Frame.io account to Boost.space Integrator you need to create an API token in your Frame.io account and insert it to the Boost.space Integrator Frame.io Create a connection dialog.
-
Log in to your Frame.io account.
-

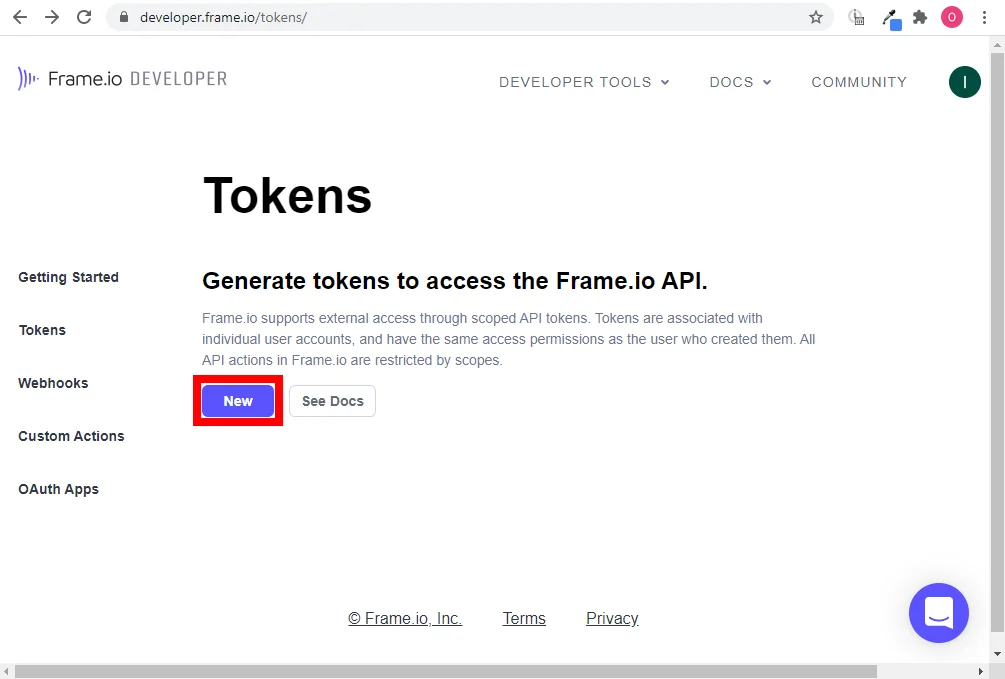

Go to the Tokens page in the Frame.io Developer.
-
Click the New button.
-
Enter the name of the token, select the scopes you want to use, and click Create.
-
Copy the provided token.
-
Go to Boost.space Integrator and open the Frame.io module’s Create a connection dialog.
-
Enter the token you have copied in step 5 to the Your Frame.io API Key field and click the Continue button to establish the connection.
The connection has been established. You can proceed with setting up the module.
Assets
Watch Assets
Triggers when a new asset is created.
Webhook name
Enter the name of the webhook, e.g. Asset created.
Connection
Establish a connection to your Frame.io account.
Team ID
Select the team this webhook will be created for.
Watch Deleted Asset
Triggers when an asset is deleted.
Webhook name
Enter the name of the webhook. E.g. Asset deleted.
Connection
Establish a connection to your Frame.io account.
Team ID
Select the team this webhook will be created for.
Watch Updated Asset Label
Triggers when an asset’s status is set, changed, or removed.
Webhook name
Enter the name of the webhook, e.g. Asset status updated.
Connection
Establish a connection to your Frame.io account.
Team ID
Select the team this webhook will be created for.
Get an Asset
Retrieves asset details.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the asset you want to retrieve details about.
Folder ID
Select the folder or map the ID of the folder that contains the asset you want to retrieve details about.
Asset ID
Select the asset or map the ID of the asset you want to retrieve details about.
Create an Asset
Creates a new asset.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that you want to create an asset for.
Folder ID
Select the folder or map the ID of the folder you want to create an asset in.
Type
Select whether to create a folder or file.
Name
Enter the name of the new file or folder (as selected above).
File Type
Select the type of file you want to upload.
File Size
The file size in bytes.
Source URL
Enter the URL of the file you want to upload.
Description
Enter a brief description of the asset.
Update an Asset
Allows you to update an existing asset’s name, description, or custom fields.
Connection
Establish a connection to your Frame.io account.
Asset ID
Select or map the asset you want to update.
Please find the descriptions of the fields in the Create an Asset section above.
Delete an Asset
Deletes a specified asset.
Connection
Establish a connection to your Frame.io account.
Asset ID
Select or map the asset you want to delete.
List Assets
Retrieves all assets in the specified project’s folder.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the folder you want to retrieve assets from.
Folder ID
Select the folder or map the ID of the folder you want to list assets from.
Limit
Set the maximum number of assets Boost.space Integrator will return during one execution cycle.
Comments
Watch Comment
Triggers when a new comment or reply is created.
Webhook name
Enter the name of the webhook, e.g. New Comment.
Connection
Establish a connection to your Frame.io account.
Team ID
Select the team this webhook will be created for.
Watch Updated Comment
Triggers when a comment is edited.
Webhook name
Enter the name of the webhook, e.g. Comment Edited.
Connection
Establish a connection to your Frame.io account.
Team ID
Select the team this webhook will be created for.
Get a Comment
Retrieves details of the specified comment.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the folder you want to retrieve assets from.
Folder ID
Select the folder or map the ID of the folder you want to list assets from.
Asset ID
Select or map the asset that contains the comment you want to retrieve.
Comment ID
Select or map the comment you want to retrieve details about.
Create a Comment
Adds a new comment or reply to the asset.
Connection
Establish a connection to your Frame.io account.
Type
Select whether you want to create a comment or reply to a comment.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the asset you want to add a comment to.
Folder ID
Select the folder or map the ID of the folder that contains the asset you want to add a comment to.
Asset ID
Select or map the asset you want to add a comment to.
Comment ID
Select or map the comment you want to add a reply to.
Text
Enter the text content of the comment or reply.
Timestamp
Enter the frame number in the video the comment should be linked to.
Update a Comment
Edits an existing comment.
Connection
Establish a connection to your Frame.io account.
Comment ID
Select or map the comment you want to update.
Please find the descriptions of the fields in the Create a Comment section above.
Delete a Comment
Deletes a comment.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the asset you want to delete a comment from.
Folder ID
Select the folder or map the ID of the folder you want to delete the asset’s comment from.
Asset ID
Select or map the asset that contains the comment you want to delete.
Comment ID
Select or map the comment you want to delete.
List Comments
Retrieves all comments of the specified asset.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team that owns the project you want to use.
Project ID
Select the project or map the ID of the project that contains the folder you want to retrieve comments from.
Folder ID
Select the folder or map the ID of the folder you want to list comments from.
Asset ID
Select the asset or map the ID of the asset you want to list comments for.
Limit
Set the maximum number of comments Boost.space Integrator will return during one execution cycle.
Projects
List Projects
Retrieves all projects for the specified team.
Connection
Establish a connection to your Frame.io account.
Team ID
Select or map the team you want to retrieve projects for.
Limit
Set the maximum number of projects Boost.space Integrator will return during one execution cycle.
Other
Make an API Call
Allows you to perform a custom API call.
Connection
Establish a connection to your Frame.io account.
URL
Enter a path relative to https://api.frame.io. For example /v2/teams
For the list of available endpoints, refer to the Frame.io API Reference.
Method
Select the HTTP method you want to use:
GET
to retrieve information for an entry.
POST
to create a new entry.
PUT
to update/replace an existing entry.
PATCH
to make a partial entry update.
DELETE
to delete an entry.
Headers
Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call.

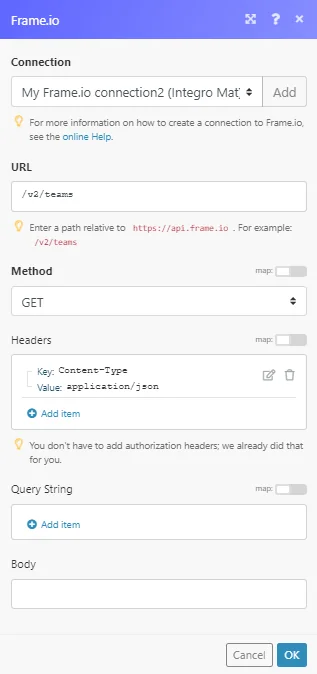

Example of Use – List Teams
The following API call returns all teams and its details in your Frame.io account:
URL:
/v2/teams
Method:
GET

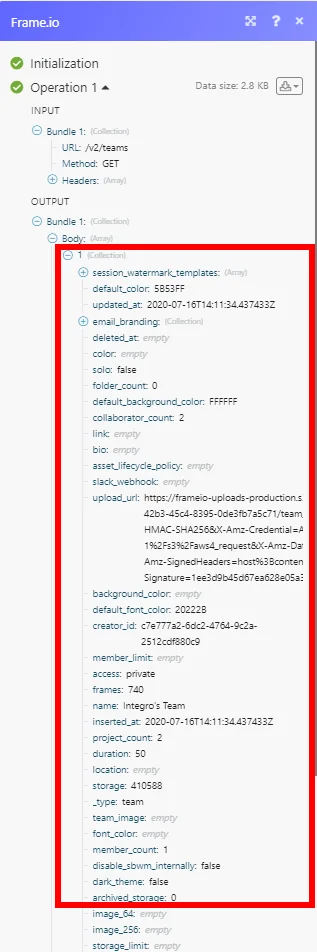

The result can be found in the module’s Output under Bundle > Body.
In our example, the details of 1 team were returned:
